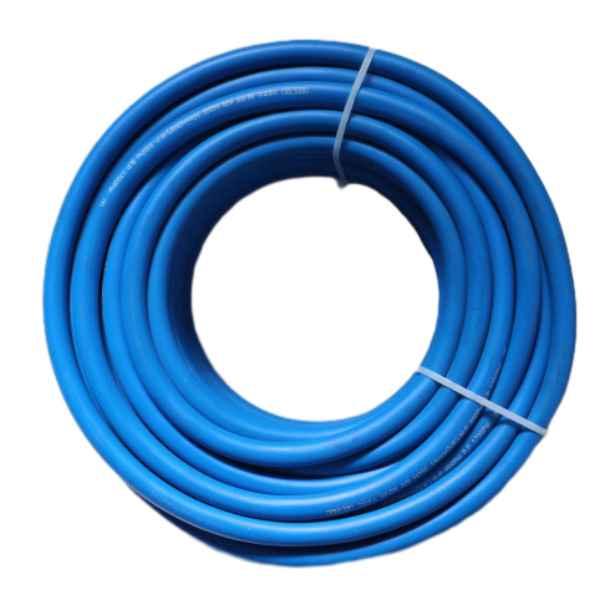

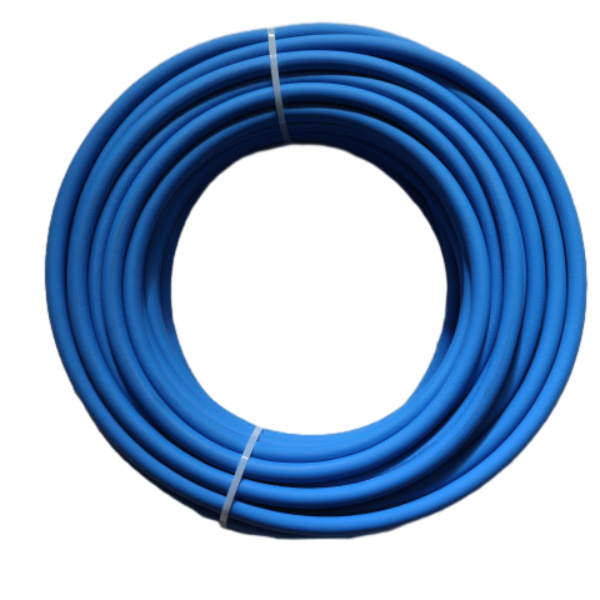

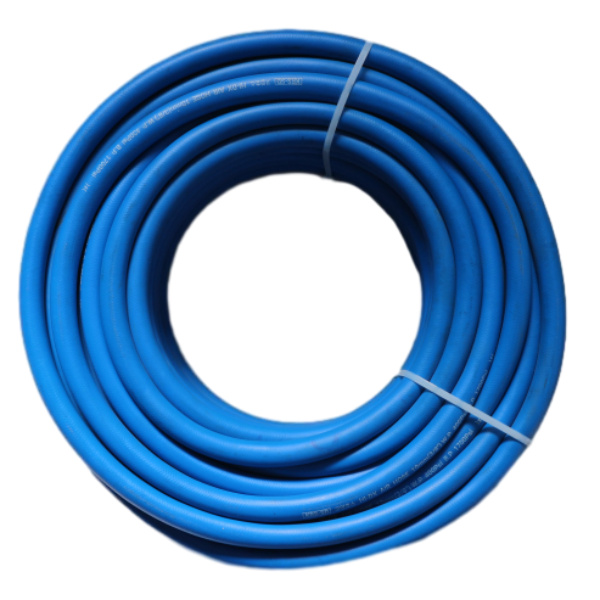

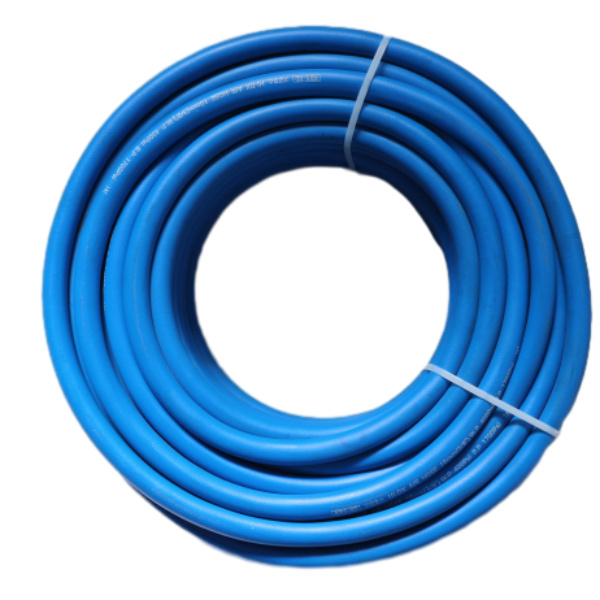

PVC pneumatic hose is a type of flexible tubing commonly used to transport compressed air or other gases in pneumatic systems. Made from polyvinyl chloride (PVC) material, these hoses are designed for high performance in various industrial, automotive, and construction applications.
Construction:
Tube: PVC
Reinforce: 1 or 2 layers of high tensile strength polyester fibre.
Cover: PVC, Anti-UV and aging.
Application:
The hose is widely used in industrial, automotive, and construction applications, where a reliable and durable pneumatic connection is required.
Characteristics:
●Tough PVC material
●High tensile polyester braid
●light weight, flexible, durable, anti-corrosion
●Non-kink
Temperature: -10℃ (-50℉) to 65℃ (+150℉)
3 Layers Spray Hose
3 Layer Pneumatic Hose | ||||||||
I.D | O.D | W.P | B.P | Length | Weight | |||
inch | mm | mm | psi | bar | psi | bar | m/roll | Kg/m |
5/16" | 8 | 14 | 450 | 30 | 1800 | 120 | 20/30 | 137 |
3/8" | 10 | 16 | 450 | 30 | 1800 | 120 | 20/30 | 160 |
1/2" | 13 | 20 | 450 | 30 | 1800 | 120 | 20/30 | 240 |
5/8" | 16 | 24 | 450 | 30 | 1800 | 120 | 20/30 | 330 |
