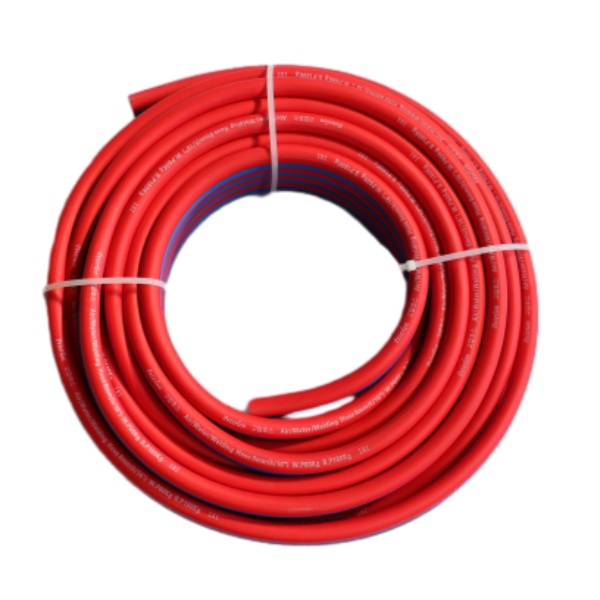

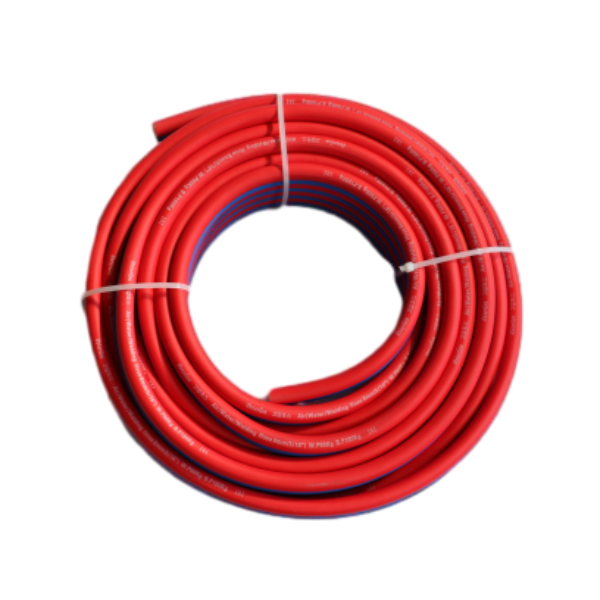

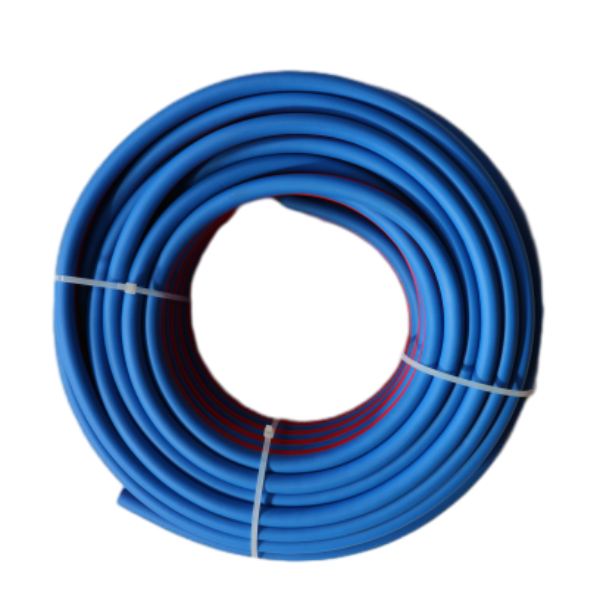

Twin Welding hose is also called twin hose tubing and PVC welding hose. It absorbs PVC material or PVC and rubber mixture. Compared with rubber hose, it is same or better at flexibility. But it is light in weight, more cost-effective and. The formula for oxygen & acetylene hose is almost the same as air hose. It has a high tensile filament reinforce. The two hoses connect side by side with each other to make a twin welding hose. What’s more, the hose resists corrosion and ozone. Oxygen & acetylene hose pipe is used for welding machine and lacquer factory.
Construction:
Tube: PVC material
Reinforce: high tensile polyester or cotton braid
Cover: PVC, Black, Red, Yellow, Blue.
Applications:
Being widely used in welding machine, architeture and lacquer factory
Characteristic:
●High tensile polyester reinforced
●Work under high pressure 300psi
●Strong peeling adhesion between fire and PVC
●light, flexible, non-kink, non-twist, UV, ozone and weather resistant
●Can be used for jackhammer hoe
Temperature: -10℃(-50℉) to 65℃(+150℉
5 Layer Pvc Welding Hose | ||||||||
I.D | O.D | W.P | B.P | Length | Weight | |||
inch | mm | mm | psi | bar | psi | bar | m/roll | Kg/m |
1/4"+1/4" | 6.5 | 12 | 450 | 30 | 1800 | 120 | 50/100 | 110 |
5/16"+5/16" | 8 | 14 | 450 | 30 | 1800 | 120 | 50/100 | 135 |
3/8"+3/8" | 10 | 16 | 450 | 30 | 1800 | 120 | 50/100 | 160 |
